Panel Mount 2 Row Barrier Terminal Block
3 Way - (TC 44 18 03, 2769966)
4 Way - (TC 44 18 04, 2769967)
12 Way - (TC 44 18 12, 2769974)
Other Number of Ways available, please check Enquiry Form below. Number of Ways indicated by last 2 digits of part number.
Specification
Housing
PA66, UL94V-0
Screws
M3.5 Steel Nickel plated
Terminals
Copper alloy, Tin plated
Pitch Spacing
9.5 mm
Temperature Range
-40°C ~ +105°C
Standard
CE (BS EN 60998)
Current Rating
20 A
Voltage Rating
300 V
Withstanding Voltage
AC 2000V / 1 MIN
Insulation Resistance
500 MΩ / DC 500V
Contact Resistance
20 mΩ
Wire Range
22-12 AWG
Torque
0.8Nm
RoHS Compliant

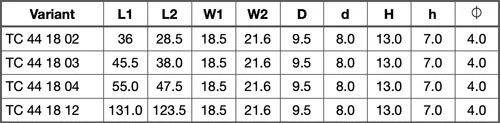

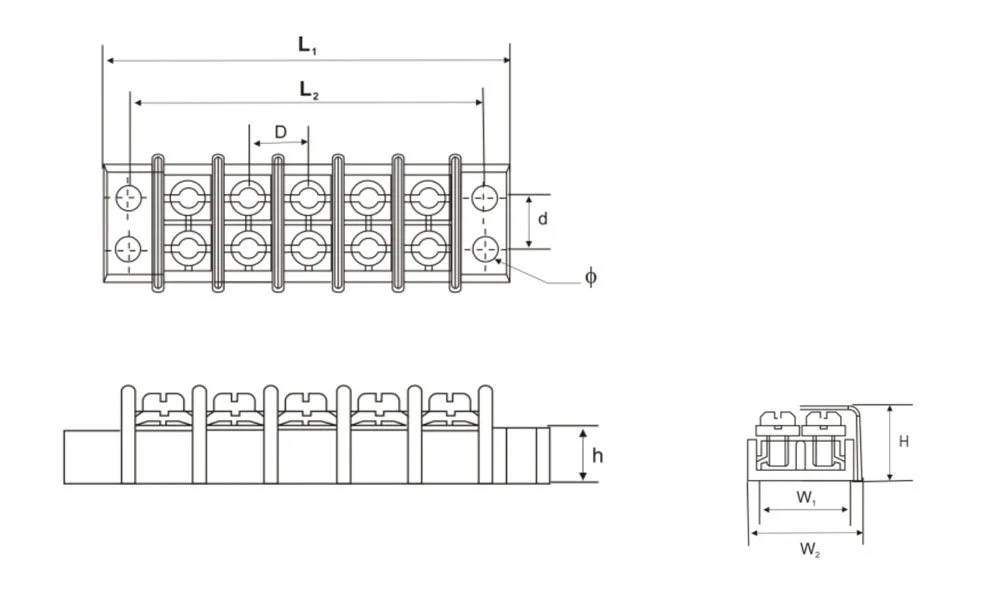

Dimensions (mm)
Get In Touch using the Form below and we’ll get back to you with a price and lead time.
